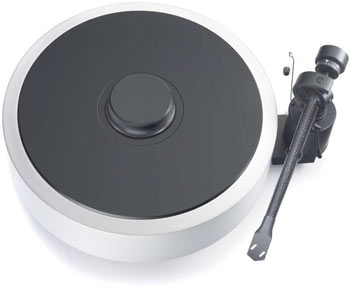

RPM 6.1 SB

Manual turntable with electronic speed change


Good sound from sound technology

  • • Tonearm bearing comprises inverted hardened
  • stainless-steel points and sapphire thrust-pads
  • • Conical carbon fibre armtube allows adjustment
  • of needle azimuth despite fixed headshell
  • • Vertical tracing angle adjustable
  • • MDF platter with vinyl playing surface and
  • brass record puck
  • • Inverted main bearing with ceramic thrust-pad
  • • Central metal block optimises centre of gravity
  • • Motor decoupled to reduce vibration
  • • Sorbothane-damped aluminium cones

Features

  • • Pro-Ject 9c tonearm
  • • Electronic speed change for 33 / 45 r.p.m.
  • • Mechanic speed change for 78 r.p.m.
  • • Record puck
  • • Gold-plated RCA phono sockets
  • • Available in silver

Technical data

Pro-Ject RPM 6.1 SB
Nominal speeds 33 / 45 / 78 r.p.m.
Electronic speed change 33 / 45 r.p.m.
Mechanic speed change 78 r.p.m.
Dust cover Pro-Ject Cover it optional
Record weight yes
RCA phono sockets yes
Sorbothane-damped aluminium cones yes
Central metal block yes
Tonearm Pro-Ject 9c
Tonearm with fibre armtube and sapphire thrust-pads yes
Effective tonearm length 9 " (230mm)
Effective tonearm mass 9,5g
Overhang 18mm
Supplied counterweight cartridge weight 6 - 10g
Optional counterweight cartridge weight 10 - 15g
Downforce range 10 - 30mN
Speed variance ?0,5 %
Wow and flutter ?0,08 %
Signal to noise -70dB
Platter weight/diameter 3,5kg/300mm
Power supply type Mains-fed outboard power supply
220 - 240V, 50 cycles or 100 - 110V, 60 cycles
Output voltage 16V/500mA AC
Power consumption 6W
Dimension 385 x 170 x 330mm
Weight 8kg
